%52 İNDİRİM

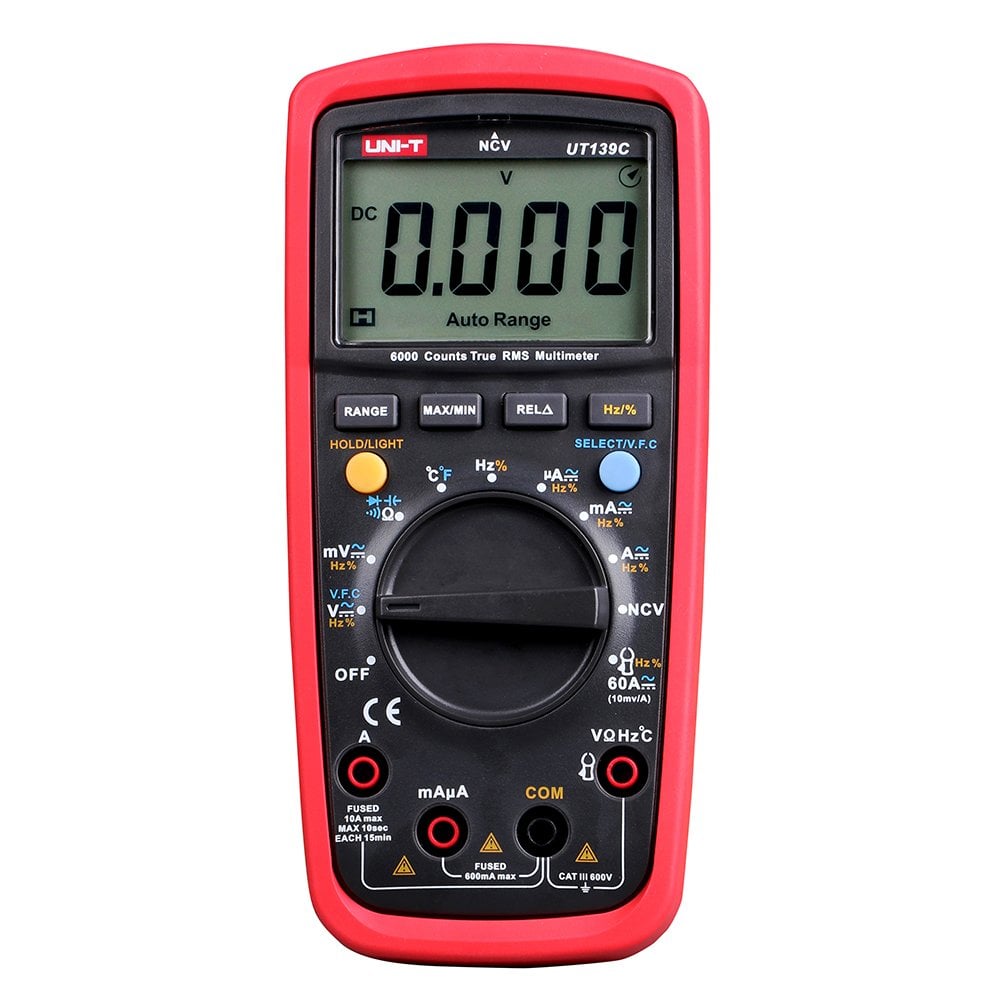

UT139C True RMS Dijital Multimetre AC DC
Satış Fiyatı
3.644,41 TL
(Kdv Dahil)
İndirimli Fiyat
1.749,32 TL
(Kdv Dahil)
Kategori
Marka
Stok Kodu
UT139C
Fiyat
88,00 USD + KDV
Havale
1.723,08 TL
(%1,50 havale indirimi)
*311,96 TL den başlayan taksitlerle!!
UNI-T'nin UT139C modeli, VFC, NCV, Max / Min / Rel ölçümlerini içeren 6000 ekran sayısına sahip True RMS otomatik dijital multimetre.
Ana Özellikler
1. MAX / MIN / REL modları
2. Veri tutma, LED arka ışığı, otomatik kapanma
3. VFC: alçak geçiren filtre
4. Tam kapsamlı koruma (600V)
5. Gerçek RMS
6. NCV
7. Otomatik / manuel aralıkları seçilebilir
| Max.Dc Akım | : | 10 Amper |
| Max.Ac Akım | : | 10 Amper |
| Max.Dc Volt | : | 600 Dc Volt |
| Max.Ac Volt | : | 600 Ac Volt |
| True RMS | : | Var |
| Kullanım Alanı | : | El Tipi Multimetre |
| Specifications | Range | Best Accuracy |
| Model | UT139C | |
| DC Voltage (V) | 60mV/600mV/6V/60V/600V | ±(0.5%+2) |
| AC Voltage (V) | 60mV/600mV/6V/60V/600V | ±(0.8%+3) |
| DC Current (A) | 600μA/6000μA/60mA/600mA/6A/10A | ±(0.7%+2) |
| AC Current (A) | 600μA/6000μA/60mA/600mA/6A/10A | ±(1%+3) |
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+2) |
| Capacitance (F) |
9.999nF/99.99nF/999.9nF/9.999μ F/99.99μF/999.9μF/9.999mF/99.99mF |
±(4.0%+5) |
| Frequency (Hz) | 10Hz-10MHz | ±(0.1%+4) |
| Temperature (°C) | -40 °C~1000°C | ±(1.0%+3) |
| Temperature (°F) | -40°F~1832°F | ±(1.5%+5) |
| Features | ||
| Display Count | 6000 | |
| Auto Range | √ | |
| Manual Range | √ | |
| True RMS | √ | |
| Bandwidth (Hz) | 45Hz ～1kHz | |
| V.F.C | √ | |
| Duty Cycle | 0.1% ～ 99.9% | √ |
| Diode | Around 3V | |
| NCV | √ | |
| Auto Power Off | Around 15 minutes | √ |
| Continuity Buzzer | √ | |
| Low Battery Indication | ≤2.5V | √ |
| Data Hold | √ | |
| Relative Mode | √ | |
| MAX/MIN | √ | |
| LCD Backlight | √ | |
| Input Protection | 600Vrms | √ |
| Input Impedance for DCV | 1GΩ Max | √ |
| General Characteristics | ||
| Power | AA1.5*2 | |
| LCD Size | 58mm × 36mm | |
| Product Colour | Red and grey | |
| Product Net Weight | 370g | |
| Product Size | 175mm x 81mm x 48.5mm | |
| Standard Accessories | Battery, test leads, temperature probe | |
| Standard Individual Packing | Gift box, English manual | |
| Standard Quantity Per Carton | 40pcs | |
| Standard Carton Measurement | 645×450×340mm (0.098CBM per standard carton) | |
