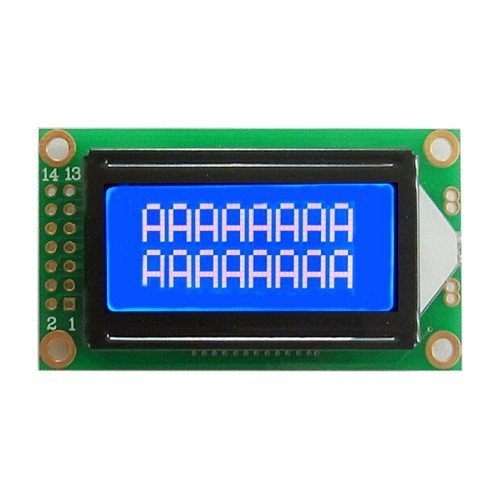

0802A 8x2 Karakter Lcd Modül Mavi

0802A 8x2 Karakter Lcd Modül Mavi

     Display content is 2 lines, each line displays 8 characters, each character size is 5×8 dot matrix.

     Character liquid crystal display module is specially used to display letters, Numbers, symbols and other dot matrix liquid crystal display module. There are 4 - bit and 8 - bit data transmission methods. Provides 5×7 dot matrix + cursor display mode. Provides a display data buffer character generator CGRAM, which can be used to store modular data for up to eight self-defined 5×8 dot matrix graphic characters. Provides a rich set of instructions: clear display;

     Cursor back to origin; Show on/off; Cursor on/off; Display character flashing; Cursor shift; Display shift, etc. The internal power-on automatic reset circuit is provided. When the external power supply voltage exceeds + 4.5v, the module will be initialized automatically and set as the default display state.

• Model: 0802A
• Display: 8×2 Characters
• Operating voltage: 5.0v
• Interface: double parallel port 14pin
• Controller: SPLC780D
• Driver Duty: 1/16
• LED Backlight: Blue Backlight
• Character: 2.96*5.56
• Module Outline Size: 58.0 * 32.0 *10.0
• View Area:37.8 *16.0
• Size of viewing area: 38X16mm

Paket İçeriği:

•       1 Adet 0802A 8x2 Karakter Lcd Modül Mavi
