5V-30V Zaman Gecikme Röle Modülü
Satış Fiyatı
59,01 TL
(Kdv Dahil)
Kategori
Marka
Stok Kodu
5V-30V-M
Fiyat
1,40 USD + KDV
Havale
58,12 TL
(%1,50 havale indirimi)
*10,52 TL den başlayan taksitlerle!!

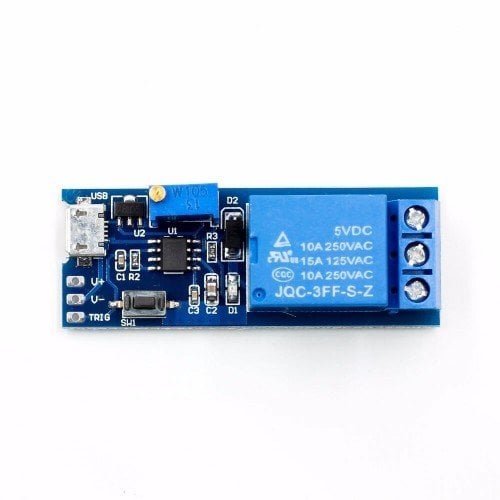

5V-30V Zaman Gecikme Röle Modülü
By adjusting the potentiometer can set the length of time
Description: The
time can be adjusted by a potentiometer to meet the use of most of the occasions.
It is very easy to use with Micro USB 5.0V power supply input.
5-30V ultra-wide power supply voltage.
Two trigger modes: external trigger and internal buttons trigger.
It has a relay suction indicator.
Strong anti-interference ability, all kinds of interference under the relay will not be improper operation, suitable for industrial control.
MicroUSB 5.0V power supply with an input port, easy to use
5 ~ 30V wide supply voltage
External signal trigger and key trigger in two ways
With a relay indicator
Anti-interference ability, the relay at various interference will not misoperation, suitable for industrial control
Burglar, alarm, building delay switch, sound and light control light switch
Delay powered vehicle equipment, to prevent large currents generated as the car starts burning vehicle equipment
Prevent simultaneous launch multiple devices cause burning appliances or fail to start
Module features:
Working voltage: 5-30V wide voltage, two types of power supply interface: MicroUSB and welding terminals.
Working mode: After the module is powered on, the output status of the module is as follows: normally open (NO) and connected to the public terminal (COM) and normally closed (NC) to the public terminal (COM).
If you instantly touch the external contact (TRIG) or trigger button to start low signal signal, the relay and indicator light relay output status is normally open (NO) and normally closed (NO) common (COM) conductor NC) and common (COM) fault, After 0-24 seconds (this time can be adjusted according to your needs), then a few minutes after the relay is turned off, the relay will return to its pre-trigger state.
The time can be adjusted by the potentiometer, and the default is 0-24 seconds. If it takes longer, a larger capacitor (C2) or a potentiometer can be replaced by itself. Time delay formula: T = 1.1RC. For example, 22uF resistor with capacitance is 1M, T = 1.1 * 0.000022 * 1000000 = 24.2 seconds.
There is a relay to absorb the indicator lamp.
The module can be controlled: 10A 250V (AC), 10A 30V (DC).
The relay has continuous flow protection.
The signal end of the module is designed to pull up the circuit and filter it. It has strong anti-interference ability and is suitable for industrial control. Many manufacturers have added optocoupler to isolate, but the module and trigger signal are not isolated and cannot resist the anti-interference effect. After testing, it was found that the stability of the trigger terminal can resist interference. Whether in the electromagnetic interference environment of the module or when the module is cut off, the relay will not fail.
Size: 5.4 x 1.9 x 1.8 cm (Length x Wx Height)
Application:
Anti-theft alarm delay, sound light control lamp switch etc. Creation.
The delay of vehicle equipment is connected to prevent the vehicle from overheating and burning of the vehicle equipment when the vehicle explodes.
Start the occasion to prevent a number of devices from starting excessive electric combustion at the same time.
Paket İçeriği:
1 Adet Zaman Gecikmeli Röle Modülü Mikro Usb
