6-30V DC Motor RK-370CC-14230
Satış Fiyatı
154,37 TL
(Kdv Dahil)
Kategori
Marka
Stok Kodu
RK-370CC
Fiyat
3,74 USD + KDV
Havale
152,05 TL
(%1,50 havale indirimi)
*27,53 TL den başlayan taksitlerle!!

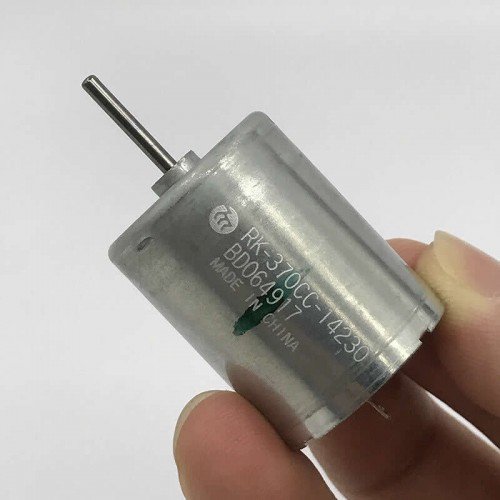

Mabuchi Motor 6-30V DC Motor RK-370CC-14230
Voltage range: 6-30V
Rated Voltage: DC30V
No Load Speed:20700RPM @30V, 8500RPM @12V
No Load Current: 0.11A
Maximum Efficiency Speed: 17460RPM
Maximum Efficiency Current: 0.59A
Maximum Efficiency Torque: 6.13mN.m(62.5g.cm)
Maximum Efficiency Output: 11.2W
Stall Torque: 39.2mN.m ( 400g.cm )
Stall Current: 3.2A
Output Power: 0.5W-24W
Motor Diameter:24mm
Motor Height: 30,5mm
Output Shaft Diameter: 2mm
Output Shaft Lenght: 15,5mm
Carbon Brush
Weight50g
Performance Table
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| V | r/min | A | r/min | A | mN·m | g·cm | W | mN·m | g·cm | A | |||
| RK-370CC | 14230 | 12 - 30 | 30 | 20700 | 0.11 | 17460 | 0.59 | 6.13 | 62.5 | 11.2 | 39.2 | 400 | 3.20 |
