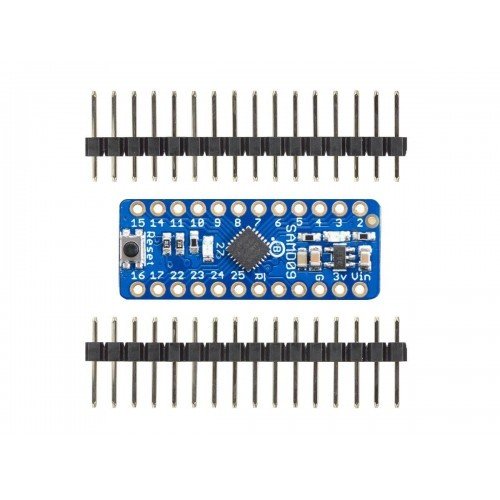

Adafruit ATSAMD09 Breakout
Satış Fiyatı
434,84 TL
(Kdv Dahil)
Kategori
Stok Kodu
ATSAMD09
Fiyat
10,50 USD + KDV
Havale
428,32 TL
(%1,50 havale indirimi)
*77,55 TL den başlayan taksitlerle!!
Adafruit ATSAMD09 Breakout Board with Seesaw
ATSAMD09D14 SAM D ARM® Cortex®-M0+ MCU 32-Bit Embedded Evaluation Board
DESCRIPTION
Adafruit ATSAMD09 Breakout Board with Seesaw is a near-universal converter framework and is great for the development of seesaw capabilities. This breakout board allows the user to add or add and extend hardware support to any I2C-capable microcontroller or microcomputer. The ATSAMD09 breakout board can be configured to give a wide range of capabilities including I2C GPIO expanders, ADCs, and PWM drivers without extra expenditures. This breakout board features 3 x 12-bit ADC inputs, 3 x 8-bit PWM outputs, and 7 x GPIO with selectable pull-up or pulldown. The ATSAMD09 breakout board also offers 1 x NeoPixel output, 1 x EEPROM with 64bytes of NVM memory, and 2 x I2C address selection pins.
Adafruit seesaw is a near-universal converter framework which allows you to add and extend hardware support to any I2C-capable microcontroller or microcomputer. Instead of getting separate I2C GPIO expanders, ADCs, PWM drivers, etc, seesaw can be configured to give a wide range of capabilities.
SPECIFICATIONS
Powered by Microchip's ATSAMD09 ARM®-Cortex®-M0+ MCU
Near-universal converter framework
Add and extend hardware support to any I2C-capable microcontroller or microcomputer
I2C GPIO expanders, ADCs, and PWM drivers etc
Great for the development of seesaw capabilities
Can be used as-is to give the Raspberry Pi or ESP8266 more hardware support
Compact and economical
3 x 12-bit ADC inputs
3 x 8-bit PWM outputs
7 x GPIO with selectable pullup or pulldown
1 x NeoPixel output (up to 63 pixels)
1 x EEPROM with 64 byte of NVM memory (handy for storing small access tokens or MAC addresses)
1 x Interrupt output that can be triggered by any of the accessories
2 x I2C address selection pins
1 x Activity LED
But you can reprogram and reconfigure the chip to have more or less of each peripheral - as long as it fits into the ATSAMD09D14's firmware! For example, there's also a UART converter but it isn't included in the default firmware.
The ATSAMD09 breakout is great for development of seesaw capabilities (we use it in-house for our design work) or you can use it as-is to give your Raspberry Pi or ESP8266 more hardware support! Each breakout comes with the assembled and tested board, as well as some header strips.
Please note: The boards do not come with a bootloader. If you want to do development on seesaw (e.g. changing the configuration) you'll need to pick up a J-Link and we recommend a SWD adapter breakout. At this time our project is for Atmel Studio but you could probably get it working with arm gcc and a Makefile. We don't provide any support for custom builds of seesaw - we think this is cool and useful for the Maker community!
For more details including the documentation on how to use seesaw, libraries for Arduino/CircuitPython/Raspberry Pi Python, schematics, and more check out the Adafruit seesaw guide
TECHNICAL DETAILS
Uses I2C address 0x49 - can be changed to 0x4A, 0x4B or 0x4C
Please note - there's a bug in the current shipping seesaw firmware that can only support up to 63 NeoPixels
Product Dimensions: 32.0mm x 12.0mm x 3.5mm / 1.3" x 0.5" x 0.1"
Product Weight: 1.6g / 0.1oz
Paket içeriği :
1 Adet Adafruit ATSAMD09 Breakout Geliştirme Kartı.
2 Adet 16 pin Erkek Pin Header
