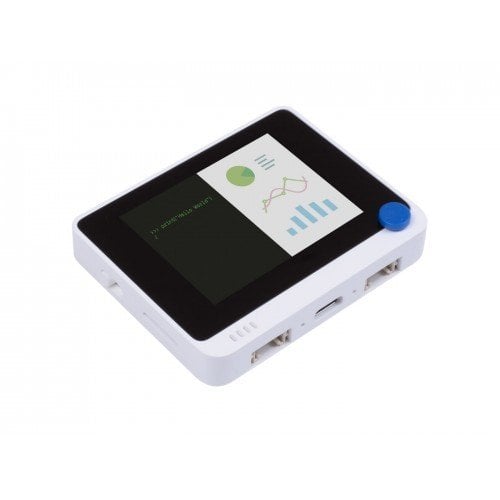

ATSAMD51 Wio Terminal 102991299

The Wio (Wireless Input and Output) platform (Wio Link, Wio Nodes,etc.) was first introduced to the world at the end of 2015 by Seeed.

Today a new Wio member is joining the family - Wio Terminal. Instead of being a single embedded functional module, Wio Terminal is more of a complete system equipped with Screen + Development Board + Input/Output Interface + Enclosure, making it an efficient and Product-Ready Product.

Key Features

Powerful MCU: Microchip ATSAMD51P19 with ARM Cortex-M4F core running at 120MHz
Reliable Wireless Connectivity: Equipped with Realtek RTL8720DN, dual-band 2.4Ghz / 5Ghz Wi-Fi
Highly Integrated Design: 2.4” LCD Screen, IMU and more practical add-ons housed in a compact enclosure with built-in magnets & mounting holes
Raspberry Pi 40-pin Compatible GPIO
Compatible with over 300 plug&play Grove modules to explore with IoT
USB OTG Support
Support Arduino, CircuitPython, Micropython, ArduPy(What is ArduPy?), AT Firmware, Visual Studio Code
TELEC certificated

With Wio Terminal, you can:

Sense and tag the Real-World data with over 300 Groves created by Seeed
Use a 100% open-source Hardware in a pythonic way
Build your program interpreter starting from 90% with LCD screen and compact enclosure

Compatible with Arduino and Micropython, Wio Terminal is an ATSAMD51-based microcontroller with wireless connectivity supported by Realtek RTL8720DN. Its CPU speed runs at 120MHz (Boost up to 200MHz). Realtek RTL8720DN chip supports both Bluetooth and Wi-Fi providing the backbone for IoT projects. The Wio Terminal itself is equipped with a 2.4” LCD Screen, onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, and infrared emitter(IR 940nm). On top of that, it also has two multifunctional Grove ports for Grove Ecosystem and Raspberry pi 40-pin compatible GPIO for more add-ons.

Wio Terminal + Grove = IoT System
Wio Terminal + Raspberry Pi = Edge Computing System
Wio Terminal + Customized add-ons = Handheld devices or endless possibilities!

Highly Integrated Design

MCU, LCD, WIFI, BT, IMU, Microphone, Buzzer, microSD Card, Configurable Buttons, Light Sensor, 5-Way Switch, Infrared Emitter (IR 940nm), Crypto-authentication Ready
Well-designed enclosure with built-in magnets and two mounting holes, allowing you to set up your IoT project without hassle

Powerful MCU - Microchip ATSAMD51P19

ARM Cortex-M4F core running at 120MHz (Boost up to 200MHz)
4 MB External Flash, 192 KB RAM
Comprehensive Protocol Support
SPI, I2C, I2S, ADC, DAC, PWM, UART(Serial)
Reliable Wireless Connectivity

Powered by Realtek RTL8720DN

Dual Band 2.4Ghz / 5Ghz Wi-Fi (802.11 a/b/g/n)
BLE / BLE 5.0

USB OTG Support:

Accessible Devices(as USB-Host): read data or signals from a mouse, keyboard, MIDI devices, Xbox/PS gaming controllers, 3D printers
Simulated Devices(as USB-Client): emulate a mouse, keyboard or MIDI devices to Host PC
When using USB Host/Client function, you can use the 40-pin on the back of Wio Terminal for power supply. Check here for detailed instructions.

Grove Ecosystem

300+ Grove modules to explore with IoT
Two onboard multi-functional Grove ports can be used for Digital, Analog, I2C, and PWM
Note: To connect Grove with Wio Terminal, please use unbuckled grove cable.

Raspberry Pi 40-pin Compatible
