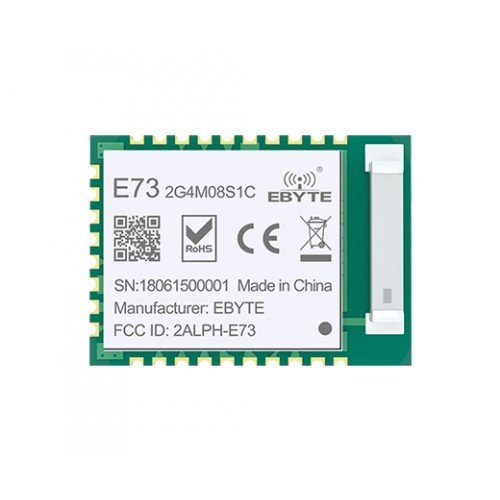

E73-2G4M08S1C nRF52840 Transceiver
Satış Fiyatı
559,09 TL
(Kdv Dahil)
Kategori
Stok Kodu
E73-2G4M08S1C
Fiyat
13,50 USD + KDV
Havale
550,70 TL
(%1,50 havale indirimi)
*99,70 TL den başlayan taksitlerle!!
CDEBYTE E73-2G4M08S1C nRF52840 BLE 5.0 Wireless Transceiver
BLE 4.2, BLE 5.0, 8dbm, 120m, 2.4GHz, Ceramic Antenna, RF Module
http://www.ebyte.com/en/product-view-news.aspx?id=445
1.The original imported nRF52840 chip, supporting BLE 4.2 and BLE 5.0.
2.With high performance ARM CORTEX-M4F kernel and 4 layer PCB borad, the module can be passed through various certification.
3.As the hardware platform only, the most of the IO port is led out for secondary development
4.The module has 32.768K real time clock.
nRF52840 System on Chip
Advanced Bluetooth 5, Thread and Zigbee multiprotocol SoC
The nRF52840 SoC is the most advanced member of the nRF52 Series SoC family. It meets the challenges of sophisticated applications that need protocol concurrency and a rich and varied set of peripherals and features. It offers generous memory availability for both Flash and RAM, which are prerequisites for such demanding applications.
The nRF52840 is fully multiprotocol capable with full protocol concurrency. It has protocol support for Bluetooth 5, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary stacks.
The nRF52840 is built around the 32-bit ARM® Cortex™-M4 CPU with floating point unit running at 64 MHz. It has NFC-A Tag for use in simplified pairing and payment solutions. The ARM TrustZone® CryptoCell cryptographic unit is included on-chip and brings an extensive range of cryptographic options that execute highly efficiently independent of the CPU. It has numerous digital peripherals and interfaces such as high speed SPI and QSPI for interfacing to external flash and displays, PDM and I2S for digital microphones and audio, and a full speed USB device for data transfer and power supply for battery recharging.
Exceptionally low energy consumption is achieved using a sophisticated on-chip adaptive power management system.
KEY FEATURES
Bluetooth 5 ready multiprotocol radio
2 MbpsyLong Range
Advertising Extensions
Channel Selection Algorithm #2 (CSA #2)
IEEE 802.15.4 radio support
Thread
Zigbee
Arm® CortexTM-M4 with floating point support
DSP instruction set
Arm CryptoCell CC310 cryptographic accelerator
15 GPIO available via edge castellation
USB interface direct to nRF52840 SoC
Integrated 2.4 GHz PCB antenna
1 user-programmable button
1 user-programmable RGB LED
1 user-programmable LED
1.7-5.5 V operation from USB or external
APPLICATIONS
Advanced wearables
Advanced personal fitness devices
Connected health
IoT
Connected home sensors and controllers
Industrial IoT sensors and controllers
Interactive entertainment devices
Advanced remote controls
Gaming controllers
Virtual/Augmented Reality applications
Paket İçeriği :
1 Adet CDEBYTE E73-2G4M08S1C nRF52840 RF Module
RF ParameterValueRemark
Working frequency2360~2500 MHz
Default: 2.4GHz (32MHz oscillator)
Transmitting power8 dBm
About 2.5mW
Receiving sensitivity
-103dBm@BLE 125kbps（Long distance mode）
-95dBm@BLE 1M
Test distance
120m
In open and clear air, with maximum power,
5dBi antenna gain, height of
2m,1Mbps
Hardware ParameterValueRemark
IC
nRF52840-QIAAC0/ aQFN™ 73
FLASH
1024 KB
RAM
256 KB
Core
ARM® Cortex™ -M4F
Size
13.0 * 18.0 mm
Antenna type
Ceramic antenna
Communication interface
I/O
Package
SMD
Electronic parameterMin.Typ.Max.UnitCondition
Power supply1.73.35.5V
Communication level0.7X VDD-VDDV
Transmitting current-
17.05
12.68
7.25
7.63-mA
TXonly run current (DC/DC, 3 V) PRF = +8 dBm
TXonly run current (DC/DC, 3 V) PRF = +4 dBm
TXonly run current (DC/DC, 5 V, REG0 out = 3.3 V)PRF =0dBm
TXonly run current(DC/DC, 3 V)P RF = 0 dBm
Receiving current-
7.71
8.27-mA
RXonly run current (DC/DC, 3 V) 1 Mbps / 1 Mbps BLE
RXonly run current (DC/DC, 3 V) 2 Mbps / 2 Mbps BLE
Operating temperature-4020+85℃
Operating humidity106090%
Storage temperature-4020+125℃
