%10 İNDİRİM

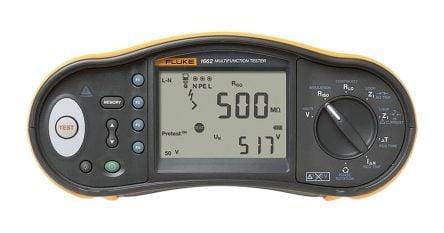

FLUKE 1662 Çok Fonksiyonlu Elektrik Test Cihazı 500V
Satış Fiyatı
101.369,08 TL
(Kdv Dahil)
İndirimli Fiyat
90.735,46 TL
(Kdv Dahil)
Kategori
Marka
Stok Kodu
FLUKE1662
Fiyat
2.313,00 USD + KDV
Havale
89.374,43 TL
(%1,50 havale indirimi)
*16.181,16 TL den başlayan taksitlerle!!
FLUKE 1662 AB, AB fiş türüne sahip çok işlevli bir yükleme test cihazıdır. Hızlı ve verimli yanlışlıkla test edilen sisteme bağlı olabilir aletleri korumak ve kolay Smartphone üzerinde test sonuçlarını paylaşmak için yapım, tüm yerel düzenlemelere test fonksiyonlu montaj AB test çalışmasına, güvenilir basittir. Bu süreklilik testi, döngü ve hat direnci, potansiyel toprak arıza akımının (PEFC / IK), ileriye dönük kısa motor sargıları ölçmek, kırık N telleri, izolasyon direnci ölçümü, süreklilik testi algılar, AC gerilim ölçümü, frekans ölçümü, kablo polarite denetleyicisi özellikleri devre akımı (PSC / IK), RCD anahtarlama süresi, RCD açma seviyesi (rampa testi), dönüş süresi ve bir test, RCD değişken akım, otomatik RCD deney sırası ve faz sırası göstergesi RCD tip A & ac akım ölçer.
- On/off switchable auto-start for RCD & loop test
- Self test & Illuminated display
- Time and date (when used with optional FlukeView software)
- Memory and computer interface
- Rotary dial knob indicates clearly which function is selected, all in one spot with no complex menus
- Large display with backlight, clear symbols & with exceptionally wide viewing angle
- Dimension is 10cm x 25cm x 12.5cm and weight is 1.3 Kg including batteries
- IP40 sealing protection
- Complies with EN61010-1 ed 2.0 (2001-02), UL61010, ANSI/ISA -s82.02.01 2000, CAN/CSA c22.2 No. 1010
- CAT III / 500V; CAT IV 300V overvoltage protection
| Direnç Ölçer | : | Evet |
| Ac Volt Ölçer | : | 500 Ac Volt Ölçer |
| Dc Volt Ölçer | : | 500 Dc Volt Ölçer |
Bu ürüne ilk yorumu siz yapın!
| AC voltage measurement | ||
| Range | 500 V | |
| Resolution | 0.1 V | |
| Accuracy 45 Hz – 66 Hz | 0.8% + 3 | |
| Input impedance | 360 kΩ | |
| Overload protection | 660 V rms | |
| Continuity testing (RLO) | ||
| Range (autoranging) | 20 Ω / 200 Ω / 2000 Ω | |
| Resolution | 0.01 Ω / 0.1 Ω / 1 Ω | |
| Open Circuit Voltage | >4 V | |
| Insulation resistance measurement (RISO) | ||
| Accuracy of tTest voltage (at rated test current) | +10%, -0% | |
| Test voltage | 100 V 250 V 500 V 1000 V |
|
| Insulation resistance range | 20 MΩ / 50 MΩ 20 MΩ / 100 MΩ 20 MΩ / 200 MΩ 20 MΩ / 200 MΩ / 500 MΩ 20 MΩ / 200 MΩ / 1000 MΩ |
|
| Resolution | 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ / 1 MΩ 0.01 MΩ / 0.1 MΩ / 1 MΩ |
|
| Test current | 1 mA @ 50 kΩ 1 mA @ 100 kΩ 1 mA @ 250 kΩ 1 mA @ 500 kΩ 1 mA @ 1 MΩ |
|
| Loop and line impedance (ZI) | ||
| Range | 10 Ω / 0.001 Ω / High current mΩ mode | |
| Resolution | 0.01 Ω / 0.1 Ω / 1 Ω | |
| Prospective earth fault current, PSC test | ||
| Range | 1000 A / 10 kA (50 kA) | |
| Resolution | 1 A / 0.1 kA | |
| Computation | Prospective earth fault current (PEFC) or Prospective short circuit current (PSC) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively. | |
| RCD testing, RCD types tested | ||
| RCD Type | A4, AC¹, G², S³ | |
| Notes | ¹Responds to AC ²General, no delay ³Time delay 4Responds to pulsed signal 5Responds to smooth DC signal |
|
| Tripping speed test (ΔT) | ||
| Current settings¹ | 10-30-100-300-500-1000 mA – VAR 10-30-100 mA |
|
| Multiplier | x ½, x 1 x 5 |
|
| Measurement range | RCD Type G | 310 ms 50 ms |
| RCD Type S | 510 ms 160 ms |
|
| Notes | ¹1000 mA type AC only 700 mA maximum type A in VAR mode VAR mode not available for type B. |
|
| RCD/FI-Tripping Current Measurement/Ramp Test (IΔN) | ||
| Current range | 30% to 110% of RCD rated current¹ | |
| Step size | 10% of IΔN² | |
| Dwell time | Type G | 300 ms/step |
| Type S | 500 ms/step | |
| Measurement accuracy | ±5% | |
| Specified trip current ranges (EN 61008-1) | 50% to 100% for Type AC 35% to 140% for Type A (>10 mA) 35% to 200% for Type A (≤10 mA) 50% to 200% for Type B ²5% for Type B |
|
| Notes | ¹30% to 150% for Type A IΔN > 10 mA 30% to 210% for Type A IΔN = 10 mA 20% to 210% for Type B |
|
| Phase Sequence Indication | ||
| Icon |  Phase Sequence indicator is active. |
|
| General Specifications | ||
| Size (L x W x H) | 10 x 25 x 12.5 cm | |
| Weight (incl. batteries) | 1.3 Kg | |
| Battery size, quantity | Type AA, 6 ea. | |
| Sealing | IP-40 | |
| Safety | Complies with EN61010-1 Ed 2.0 (2001-02), UL61010, ANSI/ISA –s82.02.01 2000 and CAN/CSA c22.2 No. 1010 2nd edition | |
| Overvoltage | CAT III / 500V; CAT IV 300V | |
| Performance | EN61557-1 to EN61557-7 Second Edition and EN61557-10 Second Edition | |
