FRDM-KL25Z Kinetis KL25
Satış Fiyatı
338,58 TL
(Kdv Dahil)
Kategori
Stok Kodu
FRDM-KL25Z
Fiyat
282,15 TL + KDV
Havale
333,50 TL
(%1,50 havale indirimi)
*60,38 TL den başlayan taksitlerle!!

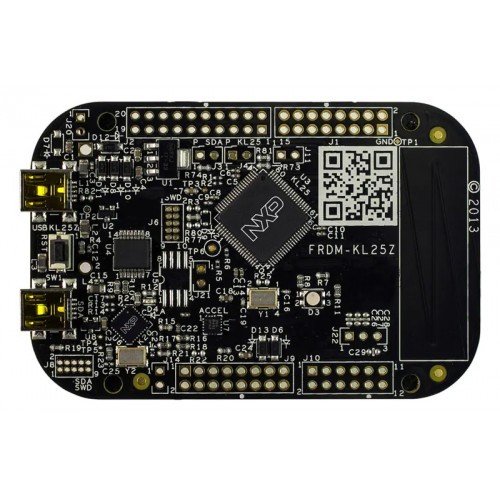

FRDM-KL25Z Kinetis KL25 Geliştirme Kartı ( REV C )
Freedom Development Platform for Kinetis® KL14, KL15, KL24, KL25 MCUs
The FRDM-KL25Z is an ultra-low-cost development platform for Kinetis L Series KL1x (KL14/15) and KL2x (KL24/25) MCUs built on ARM® Cortex™-M0+ processor. Features include easy access to MCU I/O, battery-ready, low-power operation, a standard-based form factor with expansion board options and a built-in debug interface for flash programming and run-control. The FRDM-KL25Z is supported by a range of NXP and third-party development software.
The FRDM-KL25Z has been designed by NXP in collaboration with mbed for prototyping all sorts of devices, especially those requiring the size and price point offered by Cortex-M0+ and the power of USB Host and Device. It is packaged as a development board with connectors to break out to strip board and breadboard, and includes a built-in USB FLASH programmer.
The Freedom KL25Z is an ultra-low-cost development platform for Kinetis® L Series KL1x (KL14/15) and KL2x (KL24/25) MCUs built on Arm® Cortex®-M0+ processor.
Features include easy access to MCU I/O, battery-ready, low-power operation, a standards-based form factor with expansion board options and a built-in debug interface for flash programming and run-control.
The FRDM-KL25Z is supported by a range of NXP® and third-party development software.
You can now use mbed.org at no charge, with full access to the online SDK, tools, reusable code—which means no downloads, installations or licenses—and an active community of developers.
Processor Expert® component for low voltage H-Bridge products enables rapid embedded application development.
The FRDM-KL25Z is supported by Zephyr OS for developing the Internet of Things with a free, open-source embedded operating system. Click here to learn more.
Technical and Functional Specifications
Microcontroller
MKL25Z128VLK4 MCU
48 MHz
128 KB flash
16 KB SRAM
80LQFP
Sensor
Capacitive touch "slider"
MMA8451Q accelerometer
Debug
Sophisticated OpenSDA debug interface
Open-source data logging application provides an example for customer, partner and enthusiast development on the OpenSDA circuit
P&E Multilink interface provides run-control debugging and compatibility with IDE tools
Connectivity
Easy access to MCU I/O
Tools & OS Support
Arm® Mbed™ enabled
Supported by Zephyr® OS
Mass storage device flash programming interface (default) – no tool installation required to evaluate demo apps
User Components
Tri-color LED
