JDY-23 Bluetooth 5.0 Modül
Satış Fiyatı
45,54 TL
(Kdv Dahil)
Kategori
Stok Kodu
JDY 23
Fiyat
37,95 TL + KDV
Havale
44,86 TL
(%1,50 havale indirimi)
*8,12 TL den başlayan taksitlerle!!

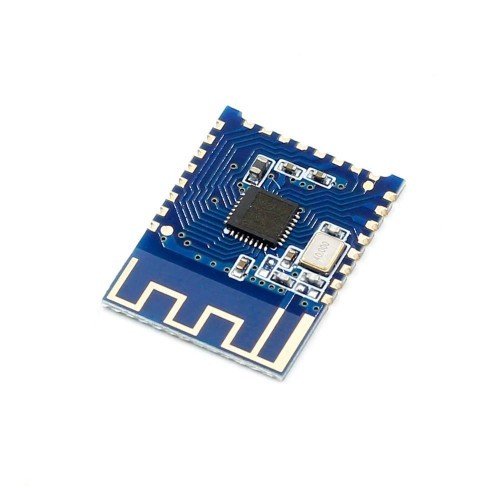

JDY-23 Bluetooth 5.0 Modül
JDY-23 transparent transmission module is based on Bluetooth 5.0 protocol standard, working frequency range is 2.4GHZ range, modulation mode is GFSK, maximum transmission power is 4db, maximum transmission distance is 60 meters.
Adopts imported original chip design, supports users to modify equipment through AT command Instructions such as name and baud rate are convenient and quick to use.(Serial port send AT command Instructions must be added \r\n)
The JDY-23 Bluetooth module can realize module and mobile phone data transmission. By default, BLE Bluetooth can be used for product application without configuration.
Communication Interface:UART;Antenna:Built-in PCB antenna.
Operating Voltage:1.8V – 3.6V;
Master-slave support:Slave
Features:
Model : JDY-23
Working frequency : 2.4G
Transmit power : 4db（maximum）
Communication Interface : UART
Operating Voltage : 1.8V – 3.6V
Operating temperature : -40℃ - 80℃
Antenna : Built-in PCB antenna
Receiving sensitivity : -97dbm
Transmission distance : 60 meter
Master-slave support : Slave
Module size : 19.6 * 14.94 *1.8 mm（Length, width and height）
Bluetooth version : BLE 5.0（Compatible with BLE4.0, BLE4.2）
Awakening state current : 800uA（Broadcast）
Light sleep state current :<50uA (Broadcast)
Deep sleep current : 9uA （No broadcast）
Instruction parameter saving : Parameter configuration power-down data is saved
RF-TX/RX peak current : 5mA
Paket İçeriği:
1 Adet JDY-23 Bluetooth 5.0 Modül
