LJ18A3-8-Z/BY Endüktif Mesafe Sensörü
Satış Fiyatı
173,35 TL
(Kdv Dahil)
Kategori
Marka
Stok Kodu
LJ18A3-8-Z/BY
Fiyat
4,20 USD + KDV
Havale
170,75 TL
(%1,50 havale indirimi)
*30,91 TL den başlayan taksitlerle!!

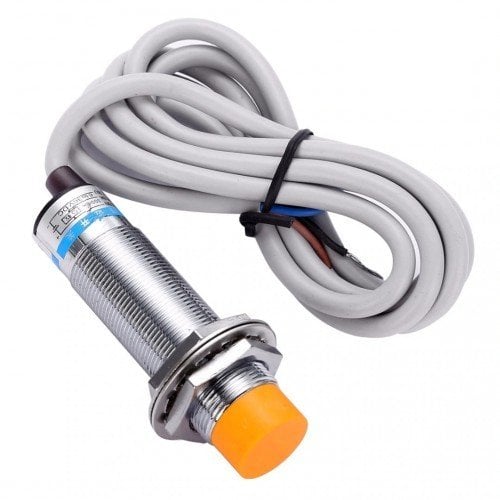

LJ18A3-8-Z/BY Endüktif Mesafe Sensörü
8mm mesafeden metal cisimleri algılamak için kullanılabilecek endüstriyel tipte sensördür. 10-30VDC gerilim ile çalışır.
LJ18A3-8-Z/BY
Tip: İndüktif sensör Çıkış PNP NO (Normally Open)
Çıkış: PNP NO (Normally Open)
Sensör Çapı: 18mm
Algılama Mesafesi: 8mm
Besleme Gerilimi: DC 6-36V
Çıkış Akımı: 300mA
Boyutlar: 6.5 x 3 cm
Kablo: DC 3 Tel ( Siyah, Kahve, Mavi)
Kablo uzunluğu: 105cm
Dış Materyal: Plastik, alaşım
Net Ağırlık: 70g
Model: LJ18A3-8-Z/BY
Material: Plastic, Alloy
Diameter of Head: approx.18mm
Detecting Distance: approx.8mm
Supply Voltage: DC 6-36V
Current Output: 300mA
Wire Type: DC 3 Wire Type (Black, Brown, Blue)
Switch Appearance Type: Cylinder Type
Theory: Inductive Sensor
Output Type: PNP NO (Normal Open)
Detect Object: Iron External
Kablo Bağlantıları:
Kahverengi: Besleme +
Mavi: GND
Siyah: Data Çıkışı
Paket içeriği:
1 Adet LJ18A3-8-Z/BY Endüktif Mesafe Sensörü
| Product information | |||||
| Type | LJ18A3-□-□ | ||||
| Product image | |||||
| Dimension | |||||
| Mounting way | Screen shield type | Non-screen shield type | |||
| Type | DC type | NPN | NO | LJ18A3-5-Z/BX | LJ18A3-8-Z/BX |
| NC | LJ18A3-5-Z/AX | LJ18A3-8-Z/AX | |||
| NO+NC | LJ18A3-5-Z/CX | LJ18A3-8-Z/CX | |||
| PNP | NO | LJ18A3-5-Z/BY | LJ18A3-8-Z/BY | ||
| NC | LJ18A3-5-Z/AY | LJ18A3-8-Z/AY | |||
| NO+NC | LJ18A3-5-Z/CY | LJ18A3-8-Z/CY | |||
| Two-wire | NO | LJ18A3-5-Z/EX | LJ18A3-8-Z/EX | ||
| NC | LJ18A3-5-Z/DX | LJ18A3-8-Z/DX | |||
| AC type | Two-wire | NO | LJ18A3-5-J/EZ | LJ18A3-8-J/EZ | |
| NC | LJ18A3-5-J/DZ | LJ18A3-8-J/DZ | |||
| Three-wire | NO+NC | ||||
| Detection distance | 5mm ± 10% | 8mm ± 10% | |||
| Set distance | 0-4mm | 0-7mm | |||
| Delay distance | 10% below of the detection distance | ||||
| Detection object | Magnetic metal(the detection distance decreases when it is non-magnetic metal) | ||||
| Standard detection object | Iron 8*8*1mm | ||||
| Response frequency | DC:0.5kHz AC:25kHz | ||||
| Supply voltage |
DC type:DC 12-24V(6-36V)Impulse(P-P)10% below AC type:AC 110-220V(36-250V)50/60Hz |
||||
| Withstand voltage | AC1000V 50/60HZ 1min between charging part and housing | ||||
| Voltage influence | Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance | ||||
| Consumption current | N.P type:13mA below, D type:0.8mA below,A type:1.7mA below | ||||
| Control output | N.P type:300mA below, D type:200mA below,A type:400mA below | ||||
| Loop protection | N.P.D type:reversal connection protection,surge absorption,load short-circuit protection,A type:surge absorption | ||||
| Ambient temperature & humidity |
During operation,storage:individually -30—+65° ( no freeze, no drew),During operation,storage:individually 35—95% RH |
||||
| Temperature influence |
Temperature range -30—+65°,at+23°, ±15%detection distance Temperature range -25—+60°,at+23°, ±10%detection distance |
||||
| Insulation impedance | 50MΩ above(DC500 megameter)between charging part and housing | ||||
| Material | Housing:Nickel plated brass Detection surface:ABS | ||||
| Protection level | IP67( IEC specification) | ||||
