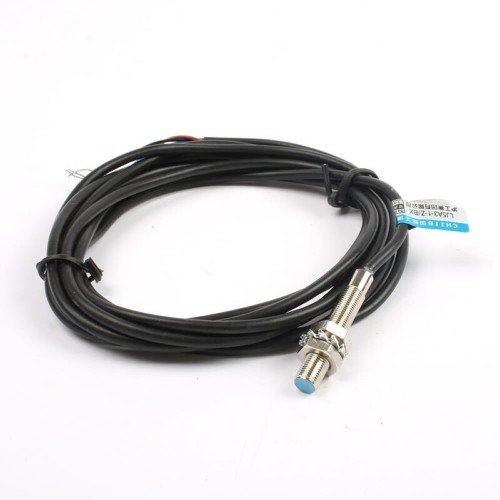

LJ5A3-1-Z/BX Endüktif Mesafe Sensörü
J5A3-1-Z/BX Endüktif Mesafe Sensörü NPN
5mm mesafeden metal cisimleri algılamak için kullanılabilecek endüstriyel tipte sensördür. DC 6-36V gerilim ile çalışır.
- LJ5A3-1-Z/BX
- Tip: İndüktif sensör Çıkış
- Çıkış: NPN NO (Normally Open)
- Sensör Çapı: 5mm
- Algılama Mesafesi: 1mm ±10%
- Çalışma Voltajı: DC 6-36V
- Çıkış Akımı: 300mA
- Tepki Frekansı: 500Hz
- Boyutlar: 6.5 x 3 cm
- Silindir tip sensör başı
- Kablo: DC 3 Tel ( Siyah, Kahve, Mavi)
- Kablo uzunluğu: 105cm
- Dış Materyal: Plastik, alaşım
- Net Ağırlık: 70gr
Kablo Bağlantıları:
- Kahverengi: Besleme +
- Mavi: GND
- Siyah: Data Çıkışı
Paket içeriği:
- 1 Adet LJ5A3-1-Z/BX Endüktif Mesafe Sensörü NPN
|
Product information |
||||
|
Mounting way |
Screen shield type |
|||
|
Type |
DC type |
NPN |
NO |
LJ5A3-1-Z/BX |
|
NC |
LJ5A3-1-Z/AX |
|||
|
NO+NC |
|
|||
|
PNP |
NO |
LJ5A3-1-Z/BY |
||
|
NC |
LJ5A3-1-Z/AY |
|||
|
NO+NC |
|
|||
|
Two-wire |
NO |
|
||
|
NC |
|
|||
|
AC type |
Two-wire |
NO |
|
|
|
NC |
|
|||
|
Three-wire |
NO+NC |
|
||
|
Detection distance |
1mm ± 10% |
|||
|
Set distance |
0-0.7mm |
|||
|
Delay distance |
10% below of the detection distance |
|||
|
Detection object |
Magnetic metal(the detection distance decreases when it is non-magnetic metal) |
|||
|
Standard detection object |
Iron 8*8*1mm |
|||
|
Response frequency |
DC:0.5kHz AC:25kHz |
|||
|
Supply voltage |
DC type：DC 12-24V（6-36V）Impulse（P-P）10% below AC type：AC 110-220V（36-250V）50/60Hz |
|||
|
Withstand voltage |
AC1000V 50/60HZ 1min between charging part and housing |
|||
|
Voltage influence |
Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance |
|||
|
Consumption current |
N.P type:13mA below, D type:0.8mA below,A type:1.7mA below |
|||
|
Control output |
N.P type:300mA below, D type:200mA below,A type:400mA below |
|||
|
Loop protection |
N.P.D type:reversal connection protection,surge absorption,load short-circuit protection,A type:surge absorption |
|||
|
Ambient temperature & humidity |
During operation,storage:individually -30—+65℃ ( no freeze, no drew),During operation,storage:individually 35—95% RH |
|||
|
Temperature influence |
Temperature range -30—+65℃,at+23℃, ±15%detection distance Temperature range -25—+60℃,at+23℃, ±10%detection distance |
|||
|
Insulation impedance |
50MΩ above(DC500 megameter)between charging part and housing |
|||
|
Material |
Housing:Nickel plated brass Detection surface:ABS |
|||
|
Protection level |
IP67( IEC specification) |
|||
