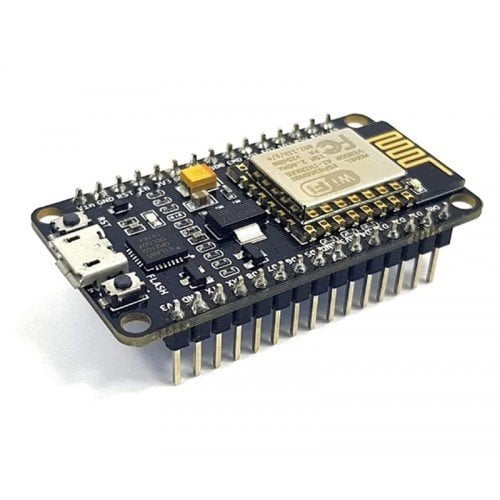

Nodemcu V3 CP2102
ESP8266 ESP-12F Wireless WIFI Internet of Things Development Board
Description:
The Development Kit based on ESP8266, integrates GPIO, PWM, IIC, 1-Wire and ADC all in one board. Power your development in the fastest way combine with NodeMCU Firmware! R2 version had CP2102 USB-TTL instead, larger current support, slim board can put on breadboard.
High quality USB cable is needed for this board to give high current supply, otherwise your board won’t be recognized.
The hardware documentation for the board can be found on nodemcu-devkit repo, including schematics and PCB layout designed with Altium Designer.
Documentation:
You can find the firmware source code and documentation on Github, as well as nodemcu-flasher, a Windows only tools to flash the firmware to a module. There’s also a separate tool called esptool that will let you flash nodemcu from Linux. In case you find the documentation is all over the place, you might want to checkout NodeMCU video tutorial below.
Nodemcu.com is the official website for the project, but you’ll find more information on Github. You can also get answers to your questions on their BBS or ESP8622 community forums.
Wi-Fi Module – ESP-12F module similar to ESP-12 module but with 6 extra GPIOs.
USB – micro USB port for power, programming and debugging
Headers – 2x 2.54mm 15-pin header with access to GPIOs, SPI, UART, ADC, and power pins
Misc – Reset and Flash buttons
Power – 5V via micro USB port
Dimensions – 49 x 24.5 x 13mm
Microcontroller ESP-8266EX
Operating Voltage 3.3V
Digital I/O Pins 11
Analog Input Pins 1(Max input: 3.2V)
Clock Speed 80MHz/160MHz
Flash 4M bytes
Length 34.2mm
Width 25.6mm
Weight 10g
Paket içeriği :
1 Adet Nodemcu V3 CP2102
PinFunctionESP-8266 Pin
TXTXDTXD
RXRXDRXD
A0Analog input, max 3.3V inputA0
D0IOGPIO16
D1IO, SCLGPIO5
D2IO, SDAGPIO4
D3IO, 10k Pull-upGPIO0
D4IO, 10k Pull-up, BUILTIN_LEDGPIO2
D5IO, SCKGPIO14
D6IO, MISOGPIO12
D7IO, MOSIGPIO13
D8IO, 10k Pull-down, SSGPIO15
GGroundGND
5V5V-
3V33.3V3.3V
RSTResetRST
