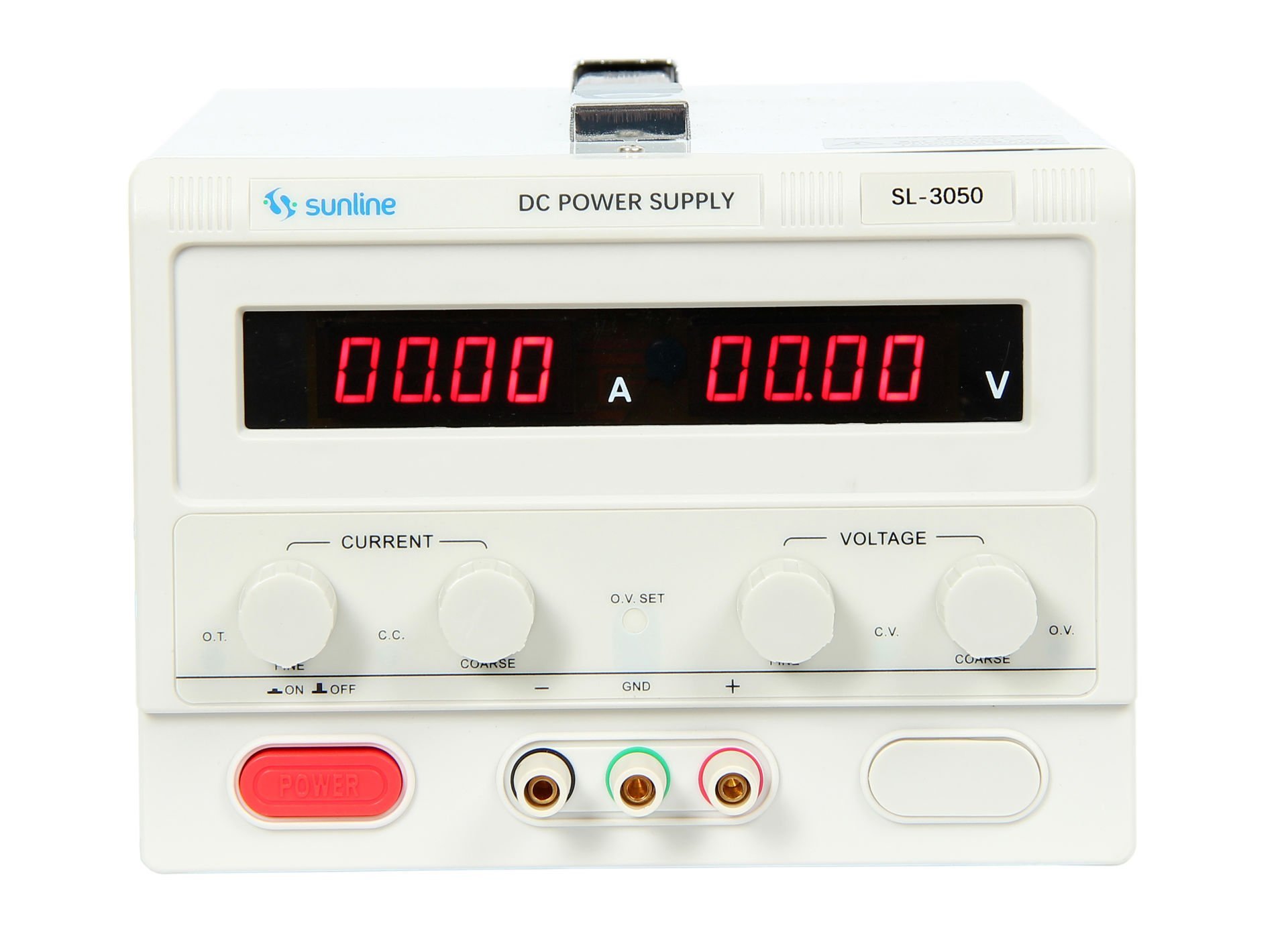

Sunline SL-3050S 30v 50A Ayarlanabilir Güç Kaynağı
|
Çıkış gücü |
1500W |
|
Çalışma Türü |
PWM |
|
Çıkış |
|
|
Çıkış voltajı |
0-30V |
|
Çıkış Akımı |
0-50A |
|
O.V.P. range |
DC 1~100% Değerlenmiş Çıkış Gücü |
|
O.C.P. range |
DC fixed 105% Maksimum Çıkış Gücü |
|
Hat regulation |
CV≤0.2% +2 Ekran |
|
CC≤0.5% +2 Ekran |
|
|
Yük regulation |
≤0.5% +2 Ekran |
|
Ripple & Noise |
≤1% rms Tam Ölçü |
|
Display |
|
|
Voltmeter |
4 Hane LED Ekran |
|
Ammeter |
4 Hane LED Ekran |
|
Voltage resolution |
0.000-9.999V; 00.00-99.99V; 000.0-999.9V |
|
Current resolution |
0.000-9.999A; 00.00-99.99A; 000.0-999.9A |
|
Accuracy |
±(1%FS+1Ekran) |
|
Optional functions |
|
|
Display meter |
4 1/2 Hane LED Ekran (Max. Ekran 19999) |
|
Output terminal |
On front panel; or on rear panel; or on both front and rear panels |
|
Output ON/OFF |
Front panel switch |
|
Terminal block or Wires on rear panel for remote control |
|
|
General |
|
|
Protection |
Over voltage, over current, over temperature and over load protections |
|
Operating environment |
0°C~40°C, <80%RH |
|
Storage environment |
-10°C~70°C, <80%RH |
|
Power source |
AC110V/220V±10%, 50/60Hz |
|
Input module |
Power socket or terminal block |
|
Dimension(WxHxD) |
200x150x285mm (M chassis, 200W~1250W) |
|
260x160x380mm (L chassis, 500W~2500W) |
|
|
260x160x440mm (XL chassis, 2250W~6kW) |
|
