TCS34725 Renk Sensör Modülü
Satış Fiyatı
155,30 TL
(Kdv Dahil)
Kategori
Stok Kodu
TCS34725
Fiyat
3,75 USD + KDV
Havale
152,97 TL
(%1,50 havale indirimi)
*27,70 TL den başlayan taksitlerle!!

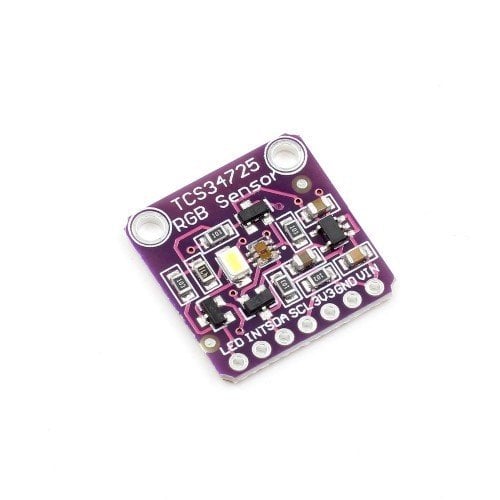

TCS34725 Renk Sensör Modülü
TCS34725 Color Sensor RGB Color Recognition Sensors Module
TCS3472 devices available in red, green and blue (RGB) and digital Mingguang induction return value. Color sensitive photodiode integrated sheet cutting and localized infrared light blocking filter, minimizing the infrared spectral components of the incident light, so that more accurate color management. High sensitivity, wide dynamic range and an infrared light blocking filter makes TCS3472 become ideal lighting conditions change and through color sensitive element attenuating materials under conditions of solution.
Specification:
Red, Green, Blue (RGB), and White Light Sensing with IR Blocking Filter
Programmable Analog Gain and Integration Time
3,800,000:1 Dynamic Range
Working voltage: 3.3~5V
Detection distance: 3 ~ 10mm
Communication method: IIC
Very High Sensitivity : Ideally Suited for Operation Behind Dark Glass
Maskable Interrupt
Programmable Upper and Lower Thresholds with Persistence Filter
Power Management
Low Power : 2.5-uA Sleep State
65-uA Wait State with Programmable Wait State Time from 2.4 ms to > 7 Seconds
I2C Fast Mode Compatible Interface
Data Rates up to 400 kbit/s
Input Voltage Levels Compatible with VDD or 1.8 V Bus
Register Set and Pin Compatible with the TCS3x71 Series
Small 2 mm*2.4 mm Dual Flat No-Lead (FN)
Product Pin Definitions:
VIN power supply positive
GND power supply negative
3V3 3.3V output
SCL clock signal
SDA data signal
INT interrupt output, active low
The LED controls the LED light near the sensor. When the high level signal is on or off, the LED light is on, and the low level signal LED is off.
Paket İçeriği :
1 Adet TCS34725 Renk Sensör Modülü
