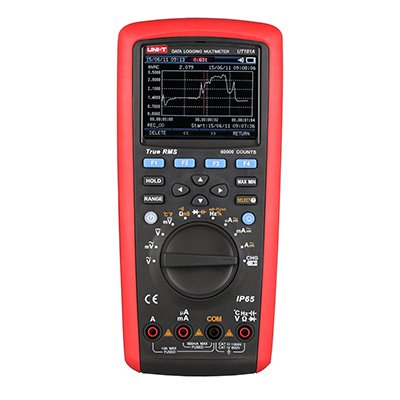

Unit UT-181A True RMS Dijital Multimetre ve Datalogger
- 1. Eğilim yakalama
- 2. Veri günlüğü: 20000
- 3. Veri karşılaştırması
- 4. 3,5 inç 64k renkli TFT LCD
- 5. Çift sıcaklık ölçümü
- 6. Alçak geçiren filtre
- 7. Li-ion pil: 2200mAh pil
- 8. Gerçek zaman ve tarih
- 9. Tepe tutma fonksiyonu
- 10. Bluetooth / APP / PC yazılımı
- 11. IP65
| Max.Dc Akım | : | 10 Amper |
| Max.Ac Akım | : | 10 Amper |
| Max.Dc Volt | : | 1000 Dc Volt |
| Max.Ac Volt | : | 1000 Ac Volt |
| True RMS | : | Var |
| Kullanım Alanı | : | El Tipi Multimetre |
|
Specifications |
Range |
Best Accuracy |
|
|
Model |
UT181A |
||
|
DC Voltage (V) |
60mV/600mV/6V/60V/600V/1000V |
±(0.025%+5) |
|
|
AC Voltage (V) |
60mV/600mV/6V/60V/600V/1000V |
±(0.3%+30) |
|
|
DC Current (A) |
600μA/6000μA/60mA/600mA/10A |
±(0.08%+10) |
|
|
AC Current (A) |
600μA/6000μA/60mA/600mA/10A |
±(0.6%+20) |
|
|
Resistance (Ω) |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(0.05%+2) |
|
|
Admittance (S) |
60ns |
±(2%+10) |
|
|
Capacitance (F) |
6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF |
±(2%+5) |
|
|
Frequency (Hz) |
10Hz-60MHz |
±(0.01%+5) |
|
|
Temperature (°C) |
-40 °C～1000°C |
±(1%+30) |
|
|
Temperature (°F) |
-40°F～1832°F |
±(1.5%+50) |
|
|
Features |
|||
|
Display Count |
60000 |
||
|
Auto Range |
√ |
||
|
Manual Range |
√ |
||
|
True RMS |
√ |
||
|
Bandwidth (Hz) |
100kHz |
√ |
|
|
AC+DC |
√ |
||
|
Low Pass Filter |
1KHz(-3db) |
√ |
|
|
Dbv/dBm |
√ |
||
|
Continuity Buzzer |
√ |
||
|
Diode |
Around 3V |
√ |
|
|
Duty Cycle |
10% ～ 90% |
√ |
|
|
Dual Temperature Measurement |
T1, T2, T1-T2, T2-T1 |
√ |
|
|
Data Hold |
√ |
||
|
Peak Hold |
√ |
||
|
Relative Mode |
√ |
||
|
Data Logging |
20000 |
√ |
|
|
Trend Capture |
√ |
||
|
MAX/MIN/AVG |
√ |
||
|
Data Time Display |
√ |
||
|
Data Comparsion |
√ |
||
|
Display Type |
3.5 Inches 64K Color TFTL LCD (320*240) |
√ |
|
|
Backlight Adjustment |
√ |
||
|
Analog Bar Graph |
√ |
||
|
USB Interface |
√ |
||
|
Mis-Plug Alarm |
√ |
||
|
Battery Indication |
√ |
||
|
Auto Power Off |
√ |
||
|
Re-Chargeable Battery |
√ |
||
|
Input Protection |
√ |
||
|
Input Impedance for DCV |
≥10MΩ |
√ |
|
