%52 İNDİRİM

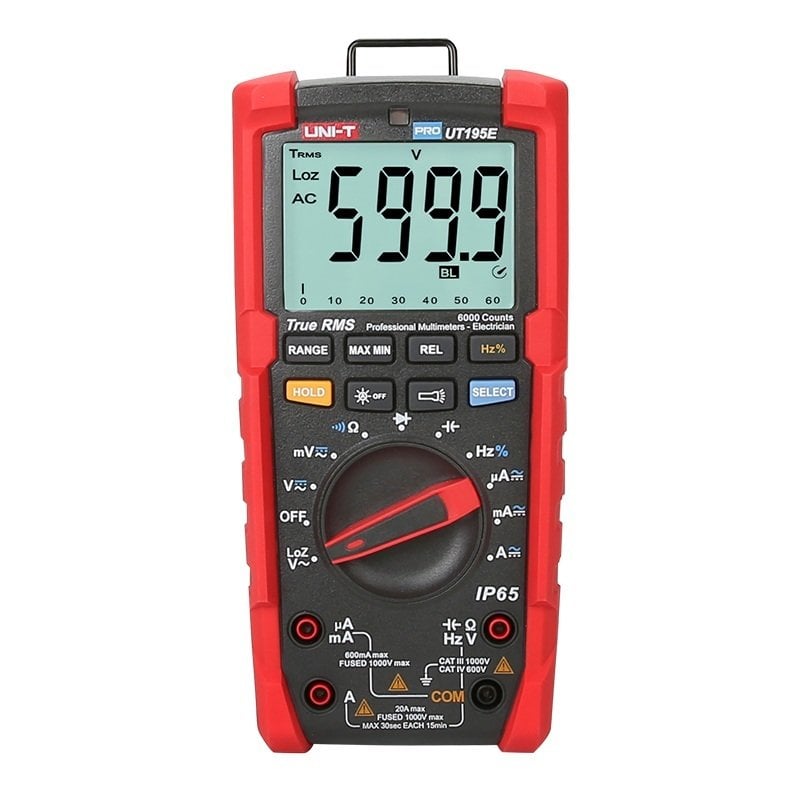

Unit UT195E Dijital Profesyonel Multimetre
Satış Fiyatı
8.199,93 TL
(Kdv Dahil)
İndirimli Fiyat
3.935,97 TL
(Kdv Dahil)
Kategori
Marka
Stok Kodu
UT-195E
Fiyat
198,00 USD + KDV
Havale
3.876,93 TL
(%1,50 havale indirimi)
*701,91 TL den başlayan taksitlerle!!
1. IP65 derecelendirmesi, 2m damla delikli, CAT III 1000V, CAT IV 600V
2. Büyük 6000 adet LCD ekran
3. True RMS
4. ACV 750V 5kHz bant genişliği
5. El feneri
6. Işık sensörü tarafından kontrol edilen otomatik LCD arka ışık (kapatılabilir)
7. Hayalet voltaj ölçümü için LoZ voltaj testi
8. 20A akım ölçümü (maksimum 30 saniye)
9. 31 analog çubuk
Teknik bilgisi için 2. Sekmeye göz atınız.
| Max.Dc Akım | : | 20 Amper |
| Max.Ac Akım | : | 20 Amper |
| Max.Dc Volt | : | 1000 Dc Volt |
| Max.Ac Volt | : | 750 Ac Volt |
| True RMS | : | Var |
| Kullanım Alanı | : | El Tipi Multimetre |
| Specifications | Range | Best Accuracy |
| Model | UT195E | |
| DC voltage | 600mV ~ 1000V | ±(0.5%+3) |
| AC voltage | 600mV ~ 750V | ±(0.7%+3) |
| LoZ ACV | 600.0V | ±(2.0%+3) |
| DC current (A) | 600.0μA ~ 20A | ±(0.8%+3) |
| AC current (A) | 600.0μA ~ 20A | ±(1.0%+3) |
| Resistance (Ω) | 600.0Ω ~ 60.00MΩ | ±(0.8%+2) |
| Capacitance | 6.000nF ~ 60.00mF | ±(3%+5) |
| Frequency | 60.00Hz ~ 10.00MHz | ±(0.1%+4) |
| Duty ratio | 0.1% ~ 99.9% | ±(2.0%+5) |
| Features | ||
| Display count | 6000 | |
| Display interface (HTN) | Single display | |
| Measurement of digital conversion rate | times/s | 3 |
| Measurement of analogue bar conversion rate | times/s | 10 |
| Analogue bar | 31 section | √ |
| True RMS | √ | |
| AC voltage frequency response | 45 ~ 400Hz | |
| AC current frequency response | 45 ~ 400Hz | |
| Low pass filter test | √ (1kHz 3dB attenuation) | |
| Diode/Continuity test | 3.5V | |
| Auto/Manual range | √ | |
| Auto power off | √ | |
| Continuity buzzer | √ | |
| Low battery indication | √ | |
| Data hold | √ | |
| MAX/MIN | √ | |
| Functional selection | √ | |
| Electrical torch | √ | |
| Auto backlight | √ | |
| Working temperature | 0 °C ~40 °C | |
| 2m drop proof | √ | |
| Protection grade | IP65 | |
| General Characteristics | ||
| Power supply | 9V 6F22 carbon-zinc or 6LR61 alkaline battery | |
| LCD size | 66mm × 51mm | |
| Device color | Red and grey | |
| Device weight | 473g | |
| Device size | 195mm × 95mm × 58mm | |
| Standard accessories | Testing probes, battery, carrying bag | |
| Standard individual packing | Gift box, user manual | |
| Standard quantity per carton | 6pcs | |
| Standard carton size | 580mm × 375mm × 215mm | |
| Standard carton gross weight | ||
