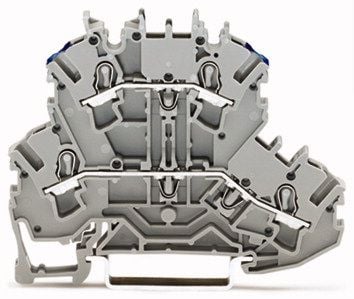

Wago 2 Katlı Köprülenebilir Klemens 2002-2203
Satış Fiyatı
135,63 TL
(Kdv Dahil)
İndirimli Fiyat
67,81 TL
(Kdv Dahil)
Kategori
Marka
Stok Kodu
2002-2203
Fiyat
3,11 EUR + KDV
Havale
66,80 TL
(%1,50 havale indirimi)
*12,09 TL den başlayan taksitlerle!!
Teknik Detay
| Name | Value | Unit |
| Total number of connection points | 4 | |
| Total number of potentials | 2 | |
| Potential marking | L/L | |
| Number of levels | 2 | |
| Color | gray | |
| Ratings according to 1 | IEC/EN 60947-7-1 | |
| Nominal current [A] | 24 | A |
| Nominal current (2) [A] | 28 | A |
| Rated voltage (III / 3) [V] | 500 | V |
| Rated surge voltage (III / 3) [kV] | 6 | kV |
| Rated voltage EN (Ex e II) [V] | 440 | V |
| Nominal current (Ex e II) [A] | 20 | A |
| Nominal current (Ex e II) with jumper [A] | 18 | A |
| Connection technology | Push-in CAGE CLAMP® | |
| Number of connection points | 2 | |
| Actuation type | Betätigungswerkzeug | |
| Connectable conductor materials | Kupfer | |
| Nominal cross section | 2.5 mm² | |
| Solid sizes | 0.25 … 4 mm² / 22 … 12 AWG | |
| solid, directly pluggable | 0.75 … 4 mm² / 18 … 12 AWG | |
| Fine-stranded wires | 0.25 … 4 mm² / 22 … 12 AWG | |
| min. fine-stranded with insulated ferrule, push-in terminati | 0.75 mm² / 18 AWG | |
| Strip length | 10 … 12 mm / 0.39 … 0.47 in | |
| Number of connection points (2) | 2 | |
| Type of wiring | Front-entry wiring | |
| Design | horizontal | |
| Marking level | Center/Side marking | |
| Insulating material | Polyamide 66 (PA 66) | |
| Fire load [MJ] | 0.204 | MJ |
| Weight [g] | 10.153 | g |
| Width | 5.2 mm / 0.205 in | |
| Height from upper-edge of DIN-rail | 51.7 mm / 2.035 in | |
| Length | 69.7 mm / 2.744 in | |
| Type of mounting | DIN-35 rail |
