%50 İNDİRİM

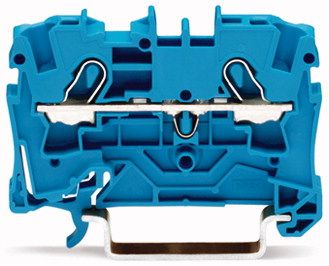

WAGO 2004-1204 İki İletkenli Klemens Mavi
Satış Fiyatı
56,82 TL
(Kdv Dahil)
İndirimli Fiyat
28,41 TL
(Kdv Dahil)
Kategori
Marka
Stok Kodu
2004-1204
Fiyat
1,29 EUR + KDV
Havale
27,99 TL
(%1,50 havale indirimi)
*5,07 TL den başlayan taksitlerle!!
Teknik Detay
| Name | Value | Unit |
| Total number of connection points | 2 | |
| Total number of potentials | 1 | |
| Color | blue | |
| Ratings according to 1 | IEC/EN 60947-7-1 | |
| Pollution degree (1) | 3 | |
| Nominal current [A] | 32 | A |
| Nominal current (2) [A] | 41 | A |
| Rated voltage EN (3) [V] | 800 | V |
| Rated surge voltage (3) [kV] | 8 | kV |
| Rated voltage EN (Ex e II) [V] | 550 | V |
| Nominal current (Ex e II) [A] | 30 | A |
| Connection technology (1) | Push-in CAGE CLAMP® | |
| Number of connection points (1) | 2 | |
| Nominal cross section | 4 mm² | |
| Solid sizes | 0.5 … 6 mm² / 20 … 10 AWG | |
| solid, directly pluggable | 1 … 6 mm² / 14 … 10 AWG | |
| Fine-stranded wires | 0.5 … 6 mm² / 20 … 10 AWG | |
| min. fine-stranded with insulated ferrule, push-in terminati | 0.75 mm² / 18 AWG | |
| Strip length | 11 … 13 mm / 0.43 … 0.51 in | |
| Type of wiring | Front-entry wiring | |
| Design | horizontal | |
| Marking level | Center/Side marking | |
| Insulating material | Polyamide 66 (PA 66) | |
| Fire load [MJ] | 0.114 | MJ |
| Weight [g] | 6.325 | g |
| Width | 6.2 mm / 0.244 in | |
| Height from upper-edge of DIN-rail [mm] | 32.9 | mm |
| Height from upper-edge of DIN-rail | 32.9 mm / 1.295 in | |
| Length | 52.3 mm / 2.059 in | |
| Type of mounting | DIN-35 rail |
