%50 İNDİRİM

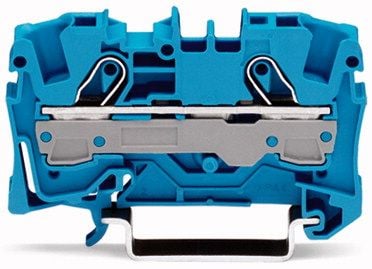

WAGO 2006-1204 İki iletkenli Klemens Mavi
Satış Fiyatı
92,89 TL
(Kdv Dahil)
İndirimli Fiyat
46,44 TL
(Kdv Dahil)
Kategori
Marka
Stok Kodu
2006-1204
Fiyat
2,13 EUR + KDV
Havale
45,75 TL
(%1,50 havale indirimi)
*8,28 TL den başlayan taksitlerle!!
Teknik Detayları
| Name | Value | Unit |
| Total number of connection points | 2 | |
| Total number of potentials | 1 | |
| Color | Mavi | |
| Ratings according to 1 | IEC/EN 60947-7-1 | |
| Pollution degree (1) | 3 | |
| Nominal current [A] | 41 | A |
| Nominal current (2) [A] | 57 | A |
| Rated voltage EN (3) [V] | 800 | V |
| Rated surge voltage (3) [kV] | 8 | kV |
| Rated voltage EN (Ex e II) [V] | 550 | V |
| Nominal current (Ex e II) [A] | 38 | A |
| Nominal current (Ex e II) with jumper [A] | 33 | A |
| Connection technology (1) | Push-in CAGE CLAMP® | |
| Number of connection points (1) | 2 | |
| Nominal cross section | 6 mm² | |
| Solid sizes | 0.5 … 10 mm² / 20 … 8 AWG | |
| solid, directly pluggable | 1 … 10 mm² / 14 … 8 AWG | |
| Fine-stranded wires | 0.5 … 10 mm² / 20 … 8 AWG | |
| min. fine-stranded with insulated ferrule, push-in terminati | 1.5 mm² / 16 AWG | |
| Strip length | 13 … 15 mm / 0.51 … 0.59 in | |
| Type of wiring | Front-entry wiring | |
| Design | horizontal | |
| Marking level | Center/Side marking | |
| Insulating material | Polyamide 66 (PA 66) | |
| Fire load [MJ] | 0.154 | MJ |
| Weight [g] | 8.893 | g |
| Width | 7.5 mm / 0.295 in | |
| Height from upper-edge of DIN-rail [mm] | 32.9 | mm |
| Height from upper-edge of DIN-rail | 32.9 mm / 1.295 in | |
| Length | 57.5 mm / 2.264 in | |
| Type of mounting | DIN-35 rail |
