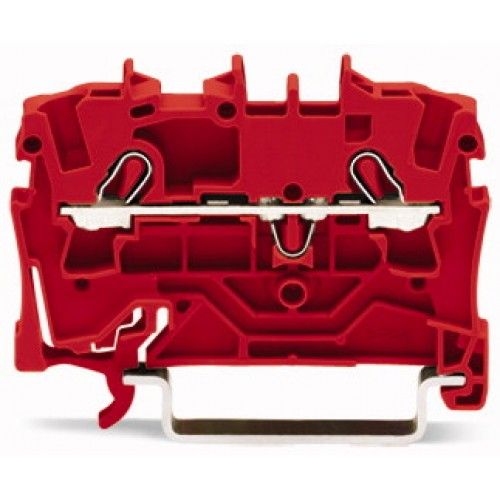

WAGO 2010-1203 İki iletkenli Klemens Kırmızı
Satış Fiyatı
141,65 TL
(Kdv Dahil)
İndirimli Fiyat
70,83 TL
(Kdv Dahil)
Kategori
Marka
Stok Kodu
2010-1203
Fiyat
3,25 EUR + KDV
Havale
69,77 TL
(%1,50 havale indirimi)
*12,63 TL den başlayan taksitlerle!!
Teknik Bİlgiler
| Name | Value | Unit |
| Total number of connection points | 2 | |
| Total number of potentials | 1 | |
| Color | Kırmızı | |
| Ratings according to 1 | IEC/EN 60947-7-1 | |
| Pollution degree (1) | 3 | |
| Nominal current [A] | 57 | A |
| Nominal current (2) [A] | 76 | A |
| Rated voltage EN (3) [V] | 800 | V |
| Rated surge voltage (3) [kV] | 8 | kV |
| Rated voltage EN (Ex e II) [V] | 550 | V |
| Nominal current (Ex e II) [A] | 51 | A |
| Connection technology (1) | Push-in CAGE CLAMP® | |
| Number of connection points (1) | 2 | |
| Nominal cross section | 10 mm² | |
| Solid sizes | 0.5 … 16 mm² / 20 … 6 AWG | |
| solid, directly pluggable | 2.5 … 16 mm² / 14 … 6 AWG | |
| Fine-stranded wires | 0.5 … 16 mm² / 20 … 6 AWG | |
| min. fine-stranded with insulated ferrule, push-in terminati | 2.5 mm² / 14 AWG | |
| Strip length | 17 … 19 mm / 0.67 … 0.75 in | |
| Type of wiring | Front-entry wiring | |
| Design | horizontal | |
| Marking level | Center/Side marking | |
| Insulating material | Polyamide 66 (PA 66) | |
| Fire load [MJ] | 0.289 | MJ |
| Weight [g] | 17.112 | g |
| Width | 10 mm / 0.394 in | |
| Height from upper-edge of DIN-rail [mm] | 36.9 | mm |
| Height from upper-edge of DIN-rail | 36.9 mm / 1.453 in | |
| Length | 67.8 mm / 2.669 in | |
| Type of mounting | DIN-35 rail |
