%50 İNDİRİM

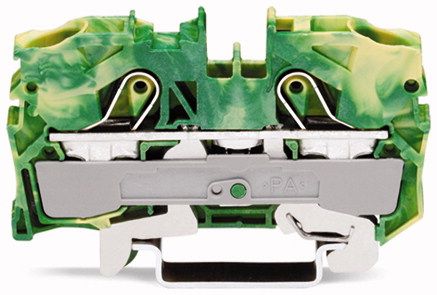

WAGO 2010-1207 Topraklamalı Sarı-Yeşil
Satış Fiyatı
319,80 TL
(Kdv Dahil)
İndirimli Fiyat
159,90 TL
(Kdv Dahil)
Kategori
Marka
Stok Kodu
2010-1207
Fiyat
7,26 EUR + KDV
Havale
157,50 TL
(%1,50 havale indirimi)
*28,52 TL den başlayan taksitlerle!!
Teknik Detayları
| Name | Value | Unit |
| Total number of connection points | 2 | |
| Total number of potentials | 1 | |
| Color | Sarı-Yeşil | |
| Ratings according to 1 | IEC/EN 60947-7-2 | |
| Connection technology (1) | Push-in CAGE CLAMP® | |
| Number of connection points (1) | 2 | |
| Nominal cross section | 10 mm² | |
| Solid sizes | 0.5 … 16 mm² / 20 … 6 AWG | |
| solid, directly pluggable | 2.5 … 16 mm² / 14 … 6 AWG | |
| Fine-stranded wires | 0.5 … 16 mm² / 20 … 6 AWG | |
| min. fine-stranded with insulated ferrule, push-in terminati | 2.5 mm² / 14 AWG | |
| Strip length | 17 … 19 mm / 0.67 … 0.75 in | |
| Type of wiring | Front-entry wiring | |
| Design | horizontal | |
| Marking level | Center/Side marking | |
| Insulating material | Polyamide 66 (PA 66) | |
| Fire load [MJ] | 0.273 | MJ |
| Weight [g] | 30.1 | g |
| Width | 10 mm / 0.394 in | |
| Height from upper-edge of DIN-rail [mm] | 36.9 | mm |
| Height from upper-edge of DIN-rail | 36.9 mm / 1.453 in | |
| Length | 67.8 mm / 2.669 in | |
| Type of mounting | DIN-35 rail |
